EFT-3002

Portable Embryo Freezer

Specifications

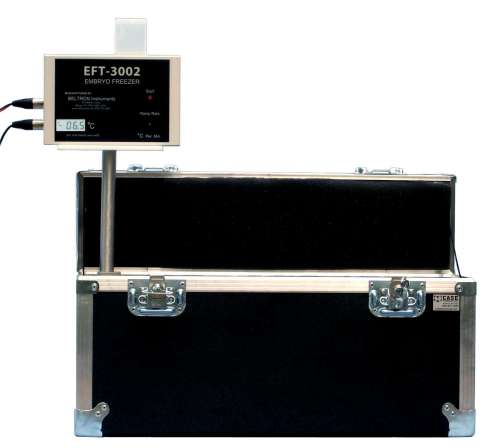

 eft3200 picture
Mains Voltage:   100-240 Volts A.C. 50-60 Hertz
DC Input: 12 volts DC @ 2.5Amps
Two Available
3.5 Amp Self Resetting ( not user replaceable)
Included Accessories:   Freezing Chamber Cap, Alcohol Bottle,
Copper Seeding Rod
Weight:

Freezer
Case

Shipping

4.2 Pounds 1.9 Kilograms
15 Pounds 6.8 Kilograms

21 Pounds 9.5 Kilograms
Dimensions: Freezer Body

Length 6.5 Inches 16.5 cm
Width 9.5 Inches 24 cm
Depth 3.75 Inches 9.5 cm
  Freezer Rod Length 18.5 Inches 49.5 cm
Diameter 1 Inch 2.5 cm
  Case Length 27 1/2 Inches 70 cm
Width 7 1/2 Inches 19 cm
Depth 12 1/2 Inches 32 cm
Straw Capacity:   32, Assuming One Straw Per. Hole, 96 Straws Maximum
Ramp Rate:   -.5 Degrees Celsius Per. Minute( mechanically limited to .7 per. Minute
Environmental Limits:   -50 to +50 Degrees Celsius
0 to 95% Humidity non- condensing

Start Temperature:

   -6.5 Degrees Celsius
End Temperature:   Approx. -35 Degrees Celsius
Safety Compliance:   CE, UL, GS
